玉柴YC16VC船用柴油發動機基于VC平臺的模塊化設計與開發。高效四增壓器，響應速度快。電控單元泵供油系統。達到非道路國家III排放標準。

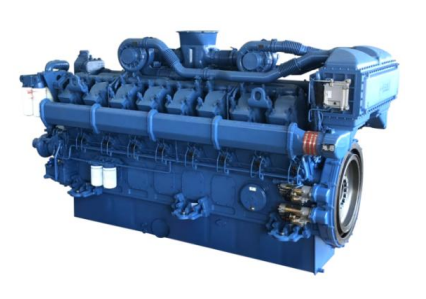

玉柴YC16VC-1船用柴油發動機
Series
YC16VC
Common power (kW)
2005~2673
Standby power (kW)
2206 to 2940
Rotational speed (rpm)
1500
Type
V-shaped,four-stroke,four-valve
Number of cylinders-bore x
stroke
16-200x210
Displacement (L)
105.5
Inhaling method
Supercharging and intercooling
Fuel system
Electrically controlled unit pump
Speed control mode
Electric control
Emission rating
Non-road Country Ⅲ
Length x width x height mm
3945x 1644x2218
Net mass kg
11400
Fit the market
Common:1800~2400kW
Standby:2000～2600kW

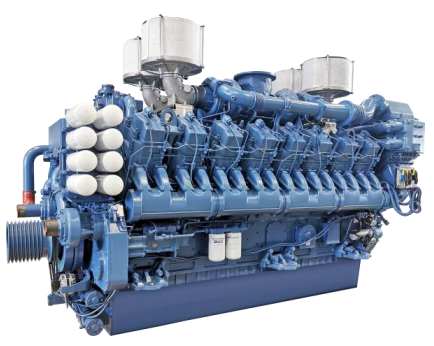

玉柴YC16VC-2船用柴油發動機
Engine model number
Commonly used Unit power
Spare Unit power
Fuel system
YC16VC3000-D31
1800KW
2000KW
電控單元泵
YC16VC3300-D31
2000KW
2200KW
YC16VC3600-D31
2200KW
2400KW
YC16VC4000-D31
2400KW
2600KW
YC16VC4200-D30
2500KW
2800KW
高壓共軌
YC16VC4500-D30
2700KW
3000KW
